The Minleon RGB Round Neon Pixel Tube is a bright digital RGB colour changing programmable neon tube that is designed to outline and create smooth looking colour outlines. The RGB Neon Pixel Tube comes in 25mm diameter and has a 360 degrees light coverage. Uses 4 wire to allow data signal redundancy for higher reliability
The Minleon RGB Round Neon Pixel Tube is perfect for outlines and dressing, applications where you want to have control of the lighting. Made of high-quality materials allowing for a long trouble-free life.
Specifications
| Product Name | RGB Round Neon Pixel Tube |
| Bulb Count | 60L/m |
| IC Count | 20 |
| Wire Colour | Black, Dark Green, White |
| Lens Type | Opaque Flat or Side |
| OUTPUT | |
| LED Type | SMD5050 |
| LED Channels | 3 - RGB |
| Protocol | 8 bit, 256 dimming levels |
| LED to chip ratio | 3 to 1 |
| Chipset | WS2818 (4 wire) with redundancy |
| CONTROL | |
| Individually Addressable | Yes |
| Control System | NDB+, Pro, WEC (ArtNet, E1.31, DDP) |
| Max Distance before Power Injection | Approx 10m(24v) |
| Cuttable sections | 63.5mm |
| ELECTRICAL & SAFETY | |
| Input Voltage | 24 Volts DC |
| Current | 0.4Amps/m |
| Power | 9.6 Watts/m |
| Wire | 4 x 18 AWG, 4C, UV Protected |
| Certifications | (C)UL Listed, IP66, CE |
| PHYSICAL | |
| Size | Diameter 25mm |
| Material | Silicone |
| Tube Style | Flat or Side |
| Connector type | Quick 1/2 turn twist lock |
| Operating Temperature | -20 Deg C to +50 Deg C |

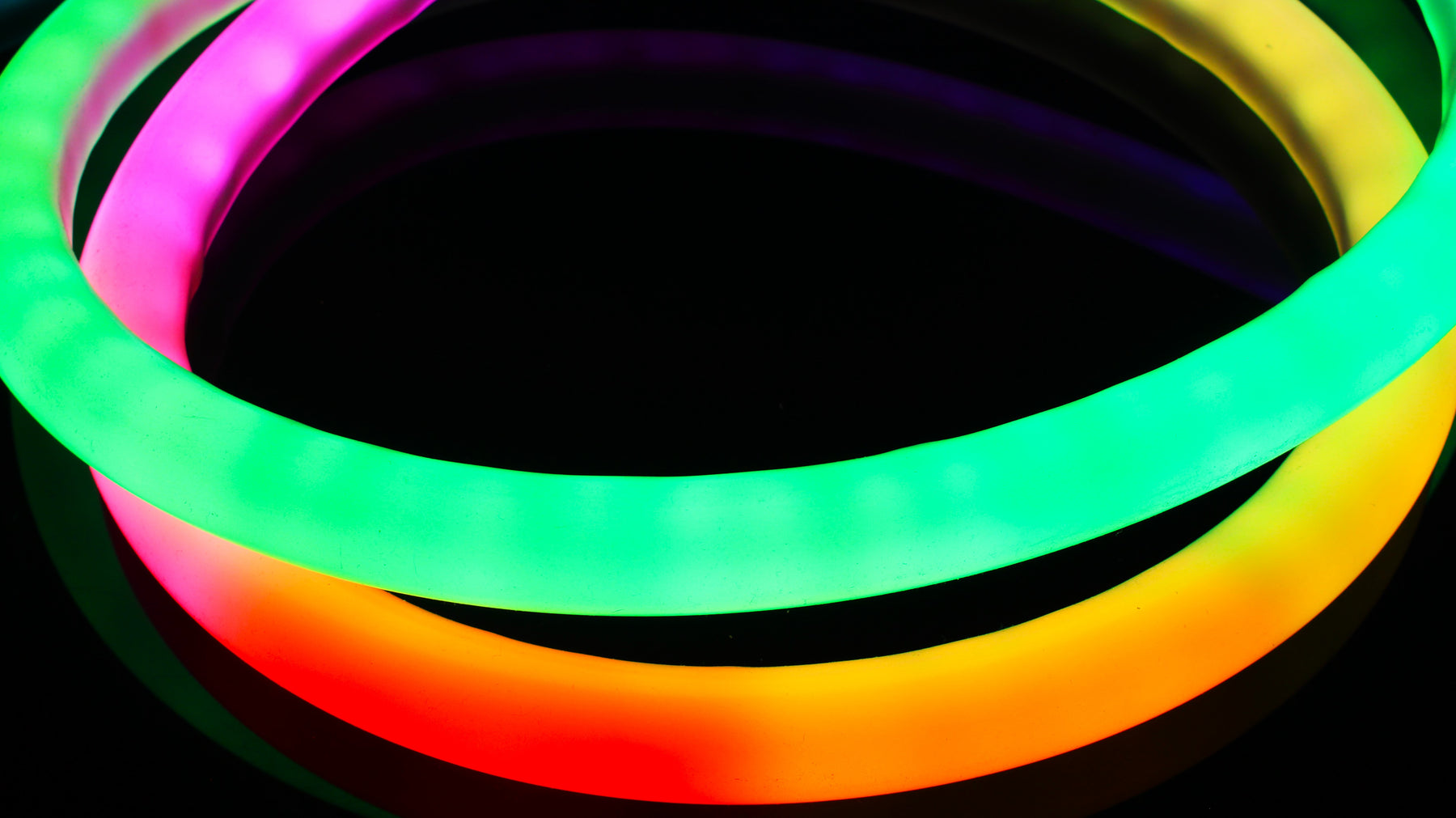

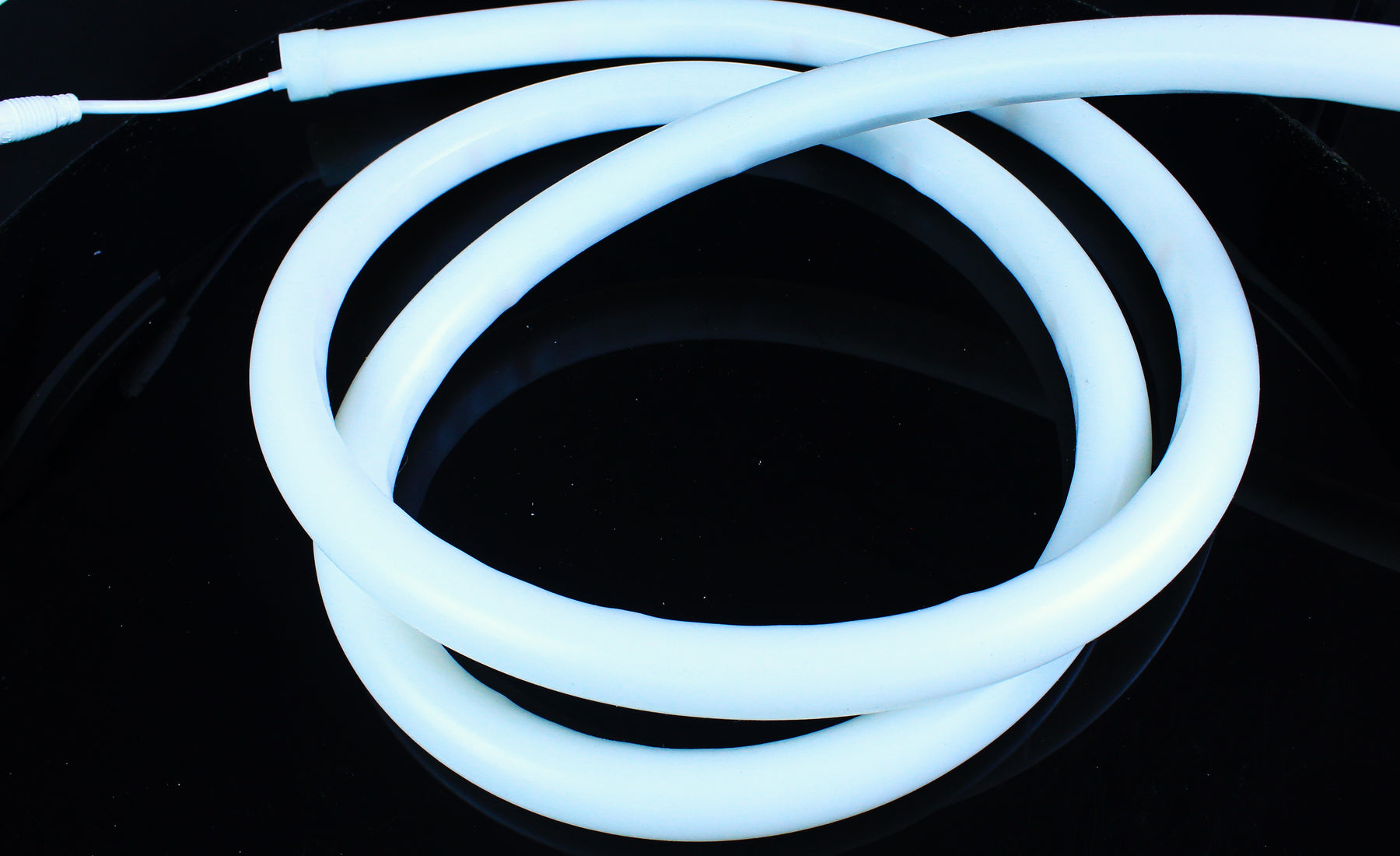

RGB Round Neon Pixel Tube
Quick 1/2 Turn Weatherproof Connector
Minleon Lighting Advantages
-
24VDC - Safe low DC voltage which is perfect for public spaces and commercial applications using quality Australian certified power supplies.
-
IP66 - Can be used outdoors or indoors, temporary or permanently.
-
UV Rated - High quality materials are used to withstand the harsh Australian sun for many years.
-
RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
-
8 Bit Digital Processing - 8 Bit per colour allowing for millions of colour combinations.
-
Redundant Data Signal - If a chipset fails to pass the data on then the redundant backup data signal will bypass that chipset
-
Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
-
Philips Lighting Partner - Minleon Group is part of the Signify Licensing Program (Philips Lighting) For RGB Lighting, so you can be assured that Minleon lighting is covered and legal to be sold into the Australian market and does not breach the intellectual property rights and patents of Signify (Philips)
-
Australian Registered Business - Deal with a trusted an Australian registered business that has been in this industry for over 7 years.
-
Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
-
Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
NOTE: Due to the custom nature of our lighting products then most products are order based. You will find stocked products below when available.
