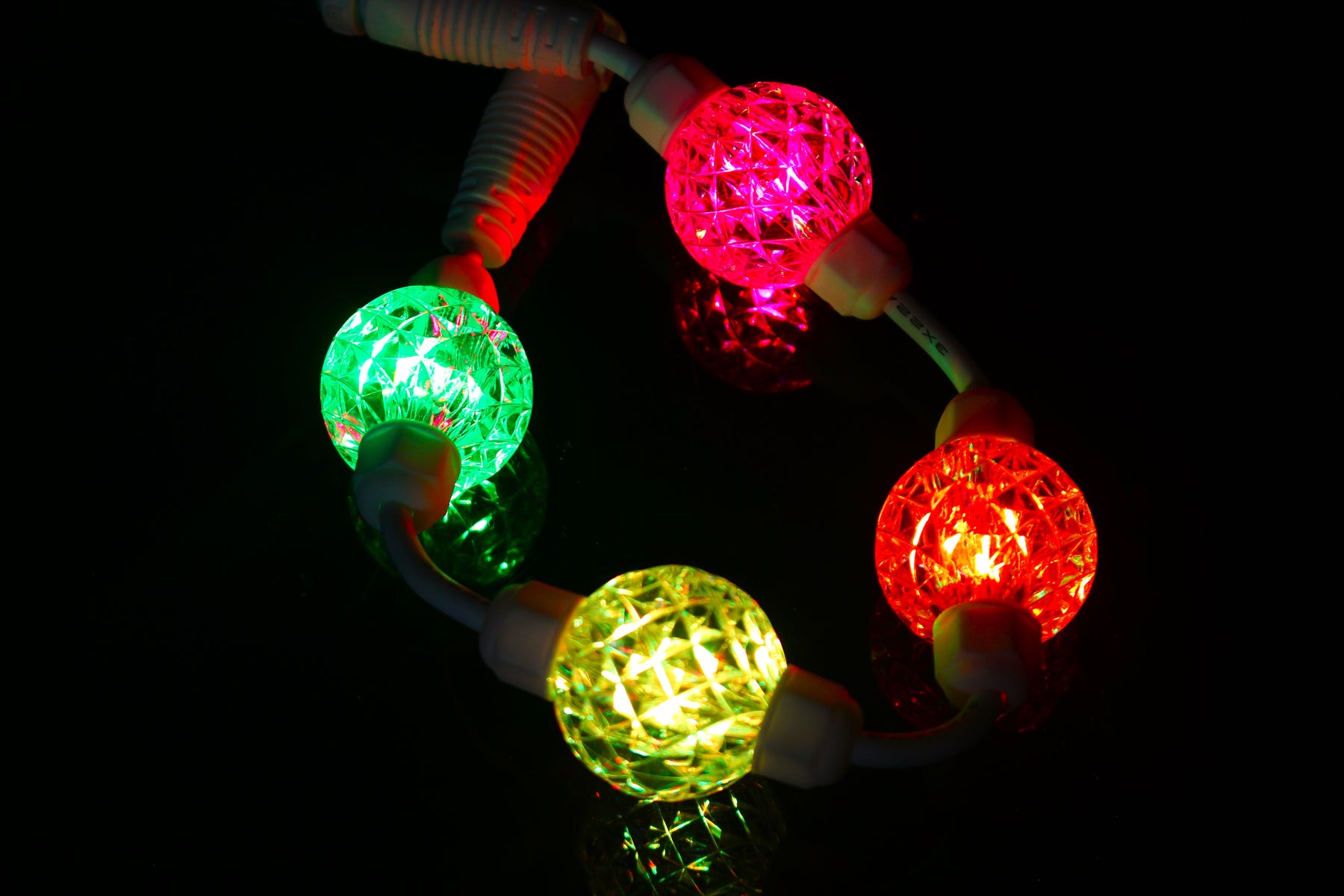

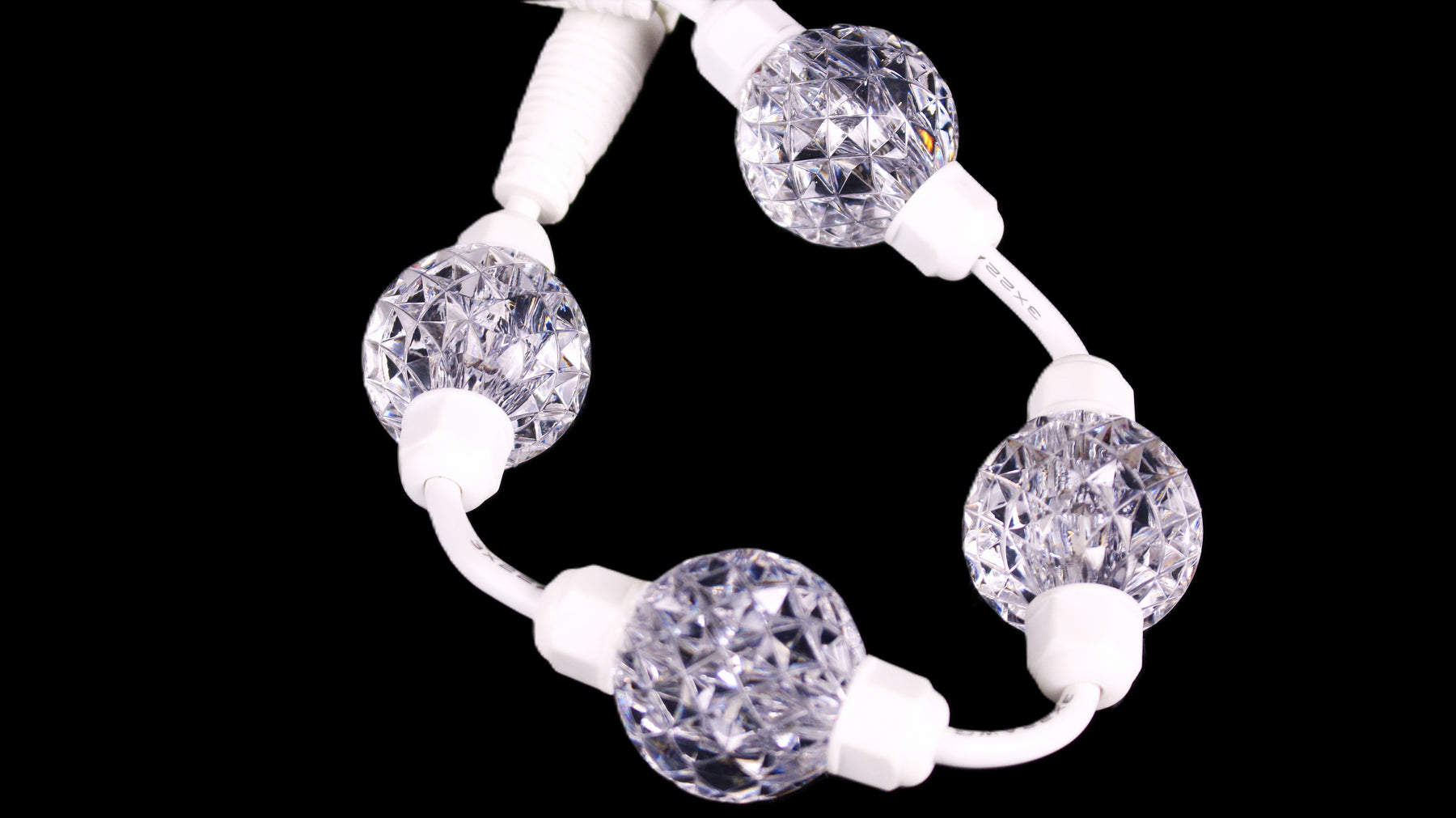

Minleon Decorative RGB Pixel G28 Mini Prism Triklit Lights are a high quality colourful bright 28mm 360 degree mini faceted ball allowing for amazing creative lighting possibilities. The Minleon Decorative RGB Pixel G28 Mini Prism Triklit Lights are a faceted G28 poly-carbonate bulb with a nice prismatic light with 2 bright digital RGB bulbs inside and are available in  Black, Green or White string with custom spacing available.

These are perfect for use hanging in foyers, matrix walls, lighting canopies, light tunnels, chandeliers, signage and many other creative lighting applications

Specifications

Product Name	RGB Pixel G28 Prism Triklit
Bulb Count	Custom
Bulb Spacing	Custom
Wire Colour	Black, Dark Green, White
Lens Type	Faceted (prism)
	OUTPUT
LED Type	SMD5050
LED Channels	3 - RGB
Protocol	16 bit, 65536 dimming levels
LED Quantity	2
Chipset	RGB+ (3 wire)
	CONTROL
Individually Addressable	Yes
Control System	NDB+, Pro, WEC (ArtNet, E1.31, DDP)
Max Lights before Power Injection	Approx 125 Lights (12vdc)
Max Distance before Power Injection	Approx 40m(12v)
	ELECTRICAL & SAFETY
Input Voltage	12 Volts DC
Current	0.028 Amps (12vdc)
Power	0.336 Watts (12vdc)
Wire	3 x 18 AWG, 3C, UV Protected
Certifications	(C)UL Listed, IP65, CE
	PHYSICAL
Size	28mm Diameter
Weight	Approx 30 grams
Material	Polycarbonate
Bulb Style	Faceted (Prism)
Connector type	Quick 1/2 turn twist lock
Operating Temperature	-20 Deg C to +50 Deg C

G28 Mini Prism Triklit

• 12VDC - Safe low DC voltage which is perfect for public spaces and commercial applications using quality Australian certified power supplies.
• IP65 - Can be used outdoors or indoors, temporary or permanently.
• UV Rated - High quality materials are used to withstand the harsh Australian sun for many years.
• RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
• 48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.
• 1KHZ Refresh Rate - High refresh rate allowing for broadcast quality recording without flicker effects.
• Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
• Philips Lighting Partner - Minleon Group is part of the Signify Licensing Program (Philips Lighting) For RGB Lighting, so you can be assured that Minleon lighting is covered and legal to be sold into the Australian market and does not breach the intellectual property rights and patents of Signify (Philips)
• Australian Registered Business - Deal with a trusted an Australian registered business that has been in this industry for over 7 years.
• Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
• Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.

.



NOTE: Due to the custom nature of our lighting products then most products are order based. You will find stocked products below when available
