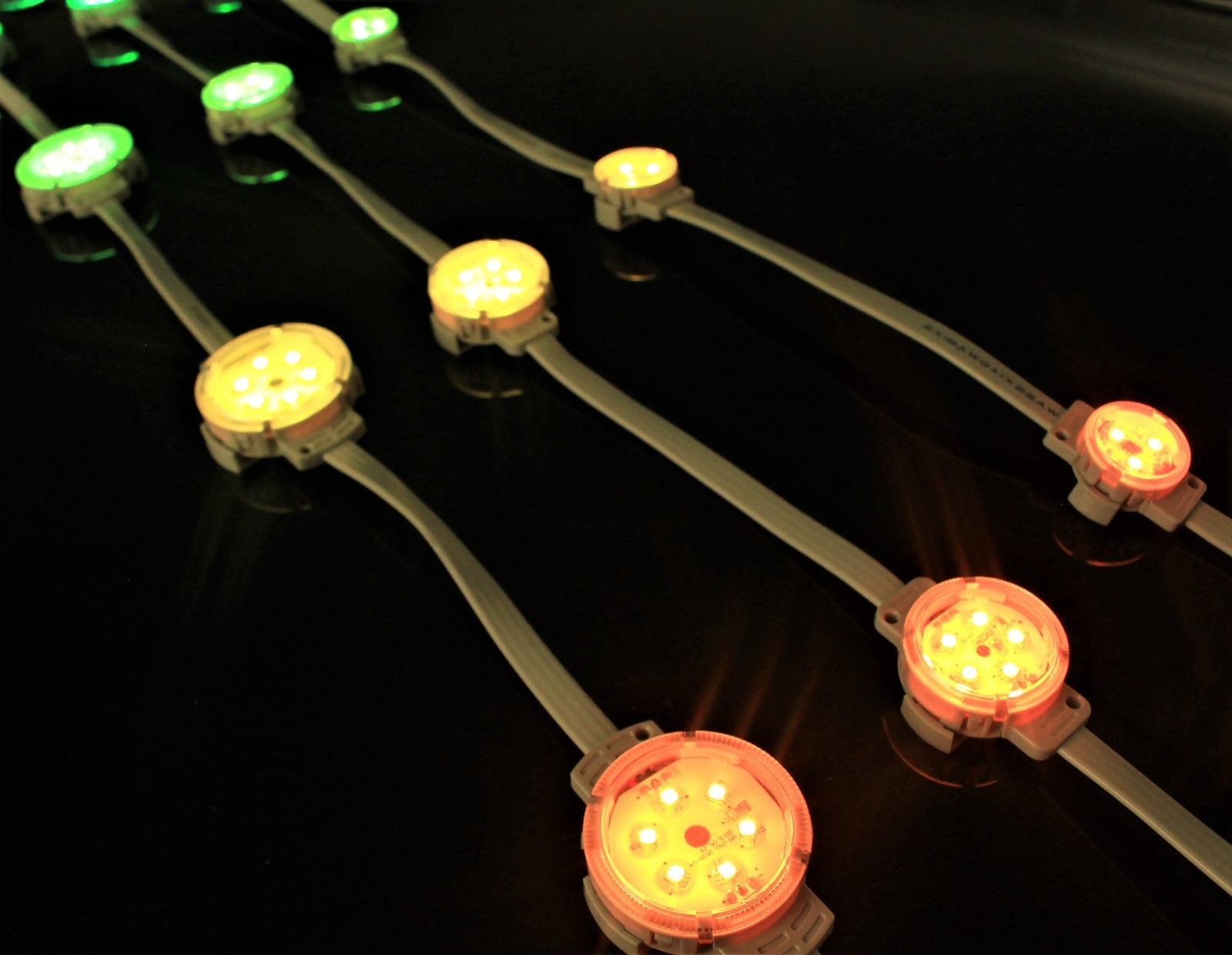

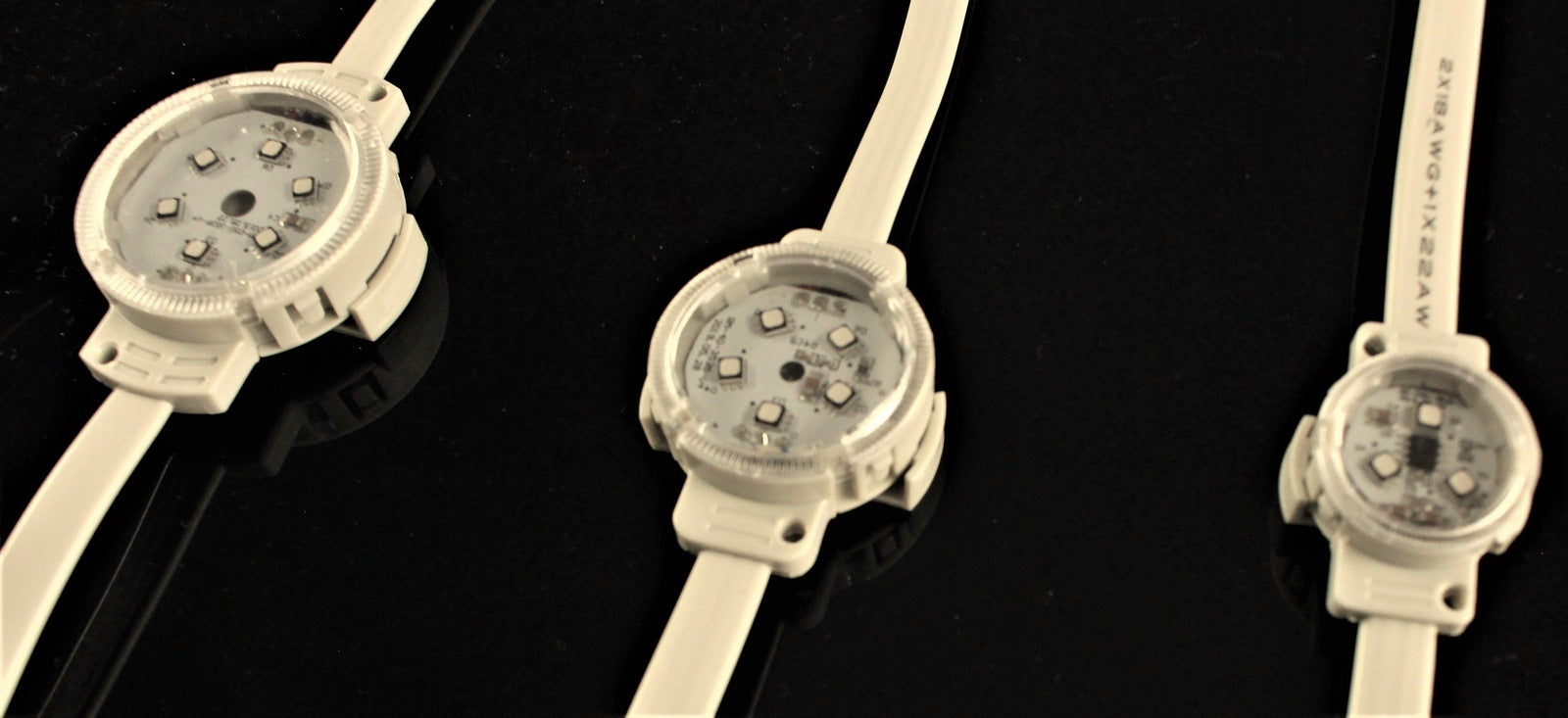

The Minleon DOT Light is a bright digital RGB colour changing programmable light that is designed to be surface mounted to create a bright light point or light backing. The DOT light comes in 3 versions, being the D50 (50mm 6LED) D40 (40mm 5LED) & D30 (30mm 3LED)
The DOT light is perfect for facades/building, signage, decorative, light fill, and many other applications and is made of high-quality materials allowing for a long trouble-free life.
Specifications
|
Name |
D30 Dot |
D40 Dot |
D50 Dot |
|
Part Number |
RGB+D30-24V |
RGB+D40-24V |
RGB+D50-24V |
|
Diameter |
30mm |
40mm |
50mm |
|
LED Quantity |
3 LEDs |
5 LEDs |
6 LEDs |
|
LED Type |
SMD 3535 |
SMD 3535 |
SMD 3535 |
|
Colour |
R-G-B |
R-G-B |
R-G-B |
|
IC Chip |
UCS 8903 48Bit 16bit/colour - 1KHZ Refresh Rate |
||
|
Light Spacing |
Custom |
Custom |
Custom |
|
Light per String |
Custom |
Custom |
Custom |
|
Material |
Polycarbonate – UV rated |
Polycarbonate – UV rated |
Polycarbonate – UV rated |
|
Voltage |
24V DC |
24V DC |
24V DC |
|
Power |
0.3W per bulb |
0.53W per bulb |
0.58W per bulb |
|
Current |
13mA per bulb |
22mA per bulb |
24mA per bulb |
|
Wire Type |
2x 18 AWG, 1x 22 AWG |
2x 18 AWG, 1x 22 AWG |
2x 18 AWG, 1x 22 AWG |
|
Wire Colour |
Gray White, Black |
Gray White, Black |
Gray White, Black |
|
Plug Type |
Connectable with ½ turn quick connect plug |
||
|
Working Temp |
-20 to +60 Deg C |
-20 to +60 Deg C |
-20 to +60 Deg C |
|
Waterproof Level |
IP67, outdoor use |
IP67, outdoor use |
IP67, outdoor use |
|
Warranty |
24 Months |
24 Months |
24 Months |
D30 DOT Light
-
24VDC - Safe low DC voltage which is perfect for public spaces and commercial applications using quality Australian certified power supplies.
-
IP67 - Can be used outdoors or indoors, temporary or permanently.
-
UV Rated - High quality materials are used to withstand the harsh Australian sun for many years.
-
RGB LED - A Red, Green and Blue LED are combined in the same package allowing the creations of millions of colours.
-
48 Bit Digital Processing - 16 Bit per colour allowing for millions of colour combinations.
-
1KHZ Refresh Rate - High refresh rate allowing for broadcast quality recording without flicker effects.
-
Quick Connect Plug - Fast 1/2 turn weatherproof connector allowing for dramatically reduced installation and dismantle times.
-
Philips Lighting Partner - Minleon Group is part of the Signify Licensing Program (Philips Lighting) For RGB Lighting, so you can be assured that Minleon lighting is covered and legal to be sold into the Australian market and does not breach the intellectual property rights and patents of Signify (Philips)
-
Australian Registered Business - Deal with a trusted an Australian registered business that has been in this industry for over 7 years.
-
Knowledge & Experience - We know our products and we can help you make the best use of our lighting and control systems for maximum impact.
-
Plug and Play Options - We work with you to offer complete plug and play solutions, programmed with installation instructions based on your customized needs.
